EFS Recon 17000lb Winch | RECON17
EFS Recon 17000lb Winch | RECON17
Regular price
$1,031.00 AUD
Regular price
Sale price
$1,031.00 AUD
Shipping calculated at checkout.
Check measurements to see if winch will fit into bar

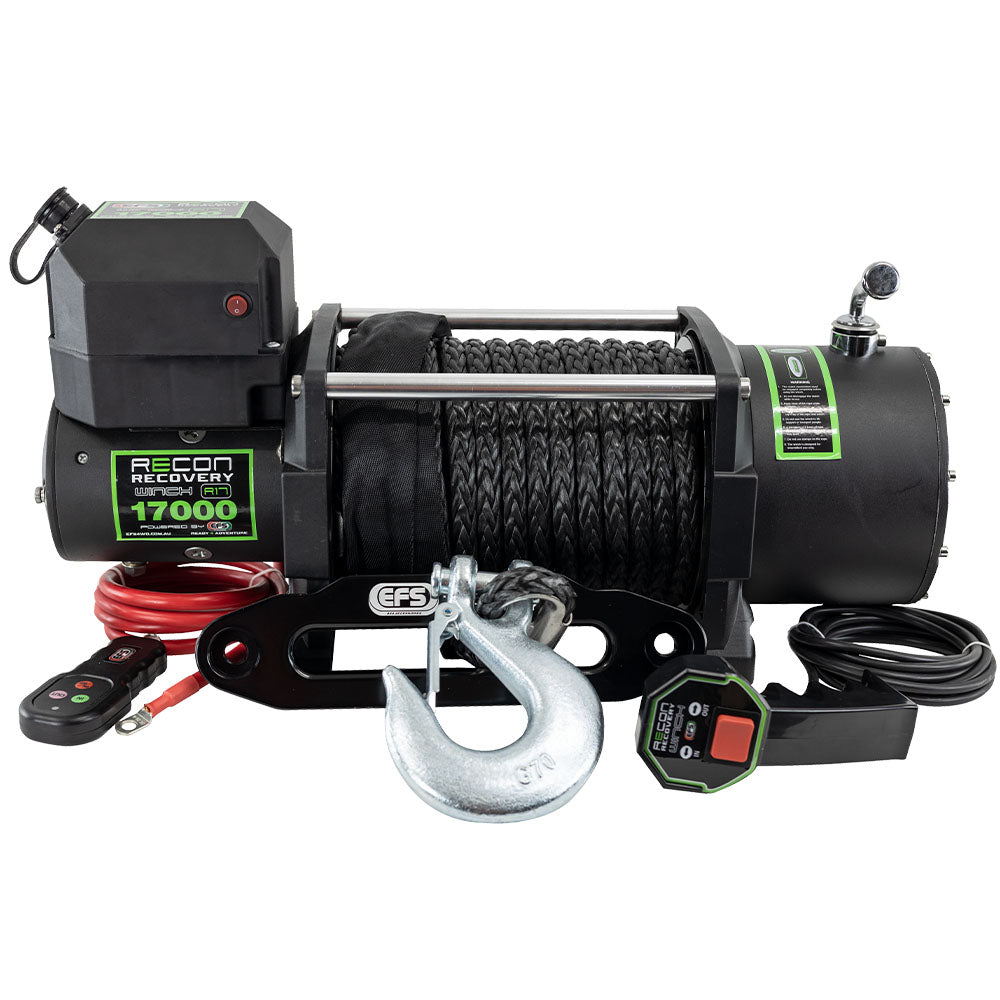

EFS RECON 17000 LBS (7720KG) electric winch, 12 volt, remote safety switch comes with wireless and wired remotes, automatic motor brake which reduces drum heat.
SPECIFICATIONS:
| Part Number | RECON-17 |
| Single line rated pull | 17,000lb (7,720kg) |
| Motor | 12V 6.0hp/4.5kw Series Wound, IP68 Waterproof |
| Control | Remote Switch, 3.6m lead & wireless remote |
| Gear Ratio | 360:1 |
| Clutch | Sliding ring gear |
| Braking Action | Automatic in the motor bracket. No heat on drum when winch works |
| Drum Size | 90mmx224mm |
| Rope | 12mmx24m |
| Fairlead | Aluminum Hawse |
| Weight | 54kg |
| Overall Dimensions(LxWxH) | 587x215x246mm |
| Packing Dimensions(LxWxH) | 650x410x254mm |
| Mounting bolt pattern | 254×114.3mm |
| 12V DC performance specs (first layer of drum) | |||
|
Line Pull Lbs.(Kgs.) |
Line Speed M/min |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 7.2 | 75 amps | 1/17,000 (7,720) |
| 2000 (910) | 3.1 | 120 amps | 2/14,160(6,430) |
| 6000 (2725) | 2.6 | 190 amps | 3/11,800 (5,360) |
| 10000 (4540) | 2.0 | 280amps | 4/9,830(4,465) |
| 14000 (6355) | 1.4 | 340 amps | |
| 17000 (7720) | 1.0 | 410 amps | |
We recommend a battery isolation switch to be used & to check measurements to see if winch will fit into bar
